VOX 5 has received the Lunar Eclipse Award by 6MOONs

a very rare honour indeed !

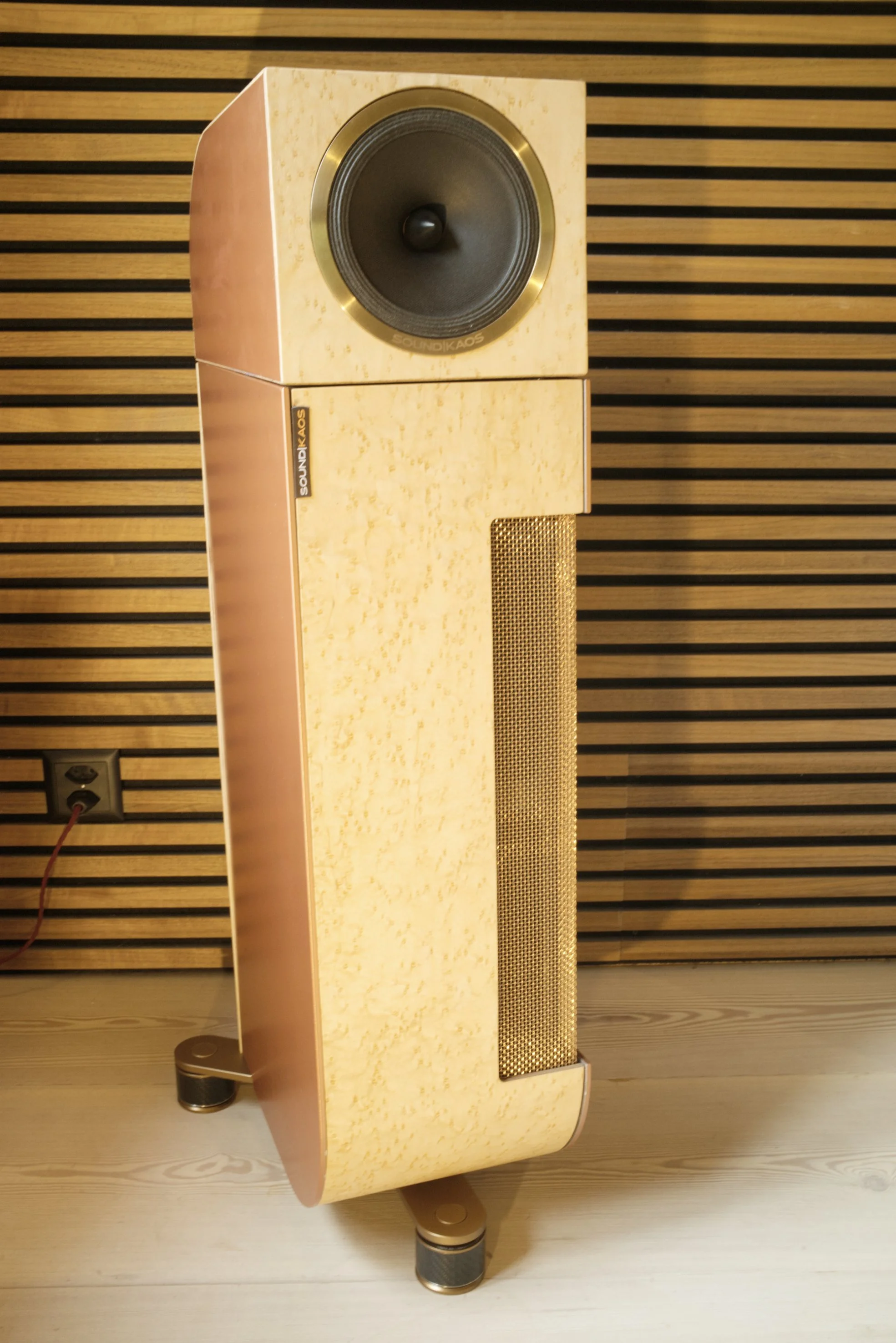

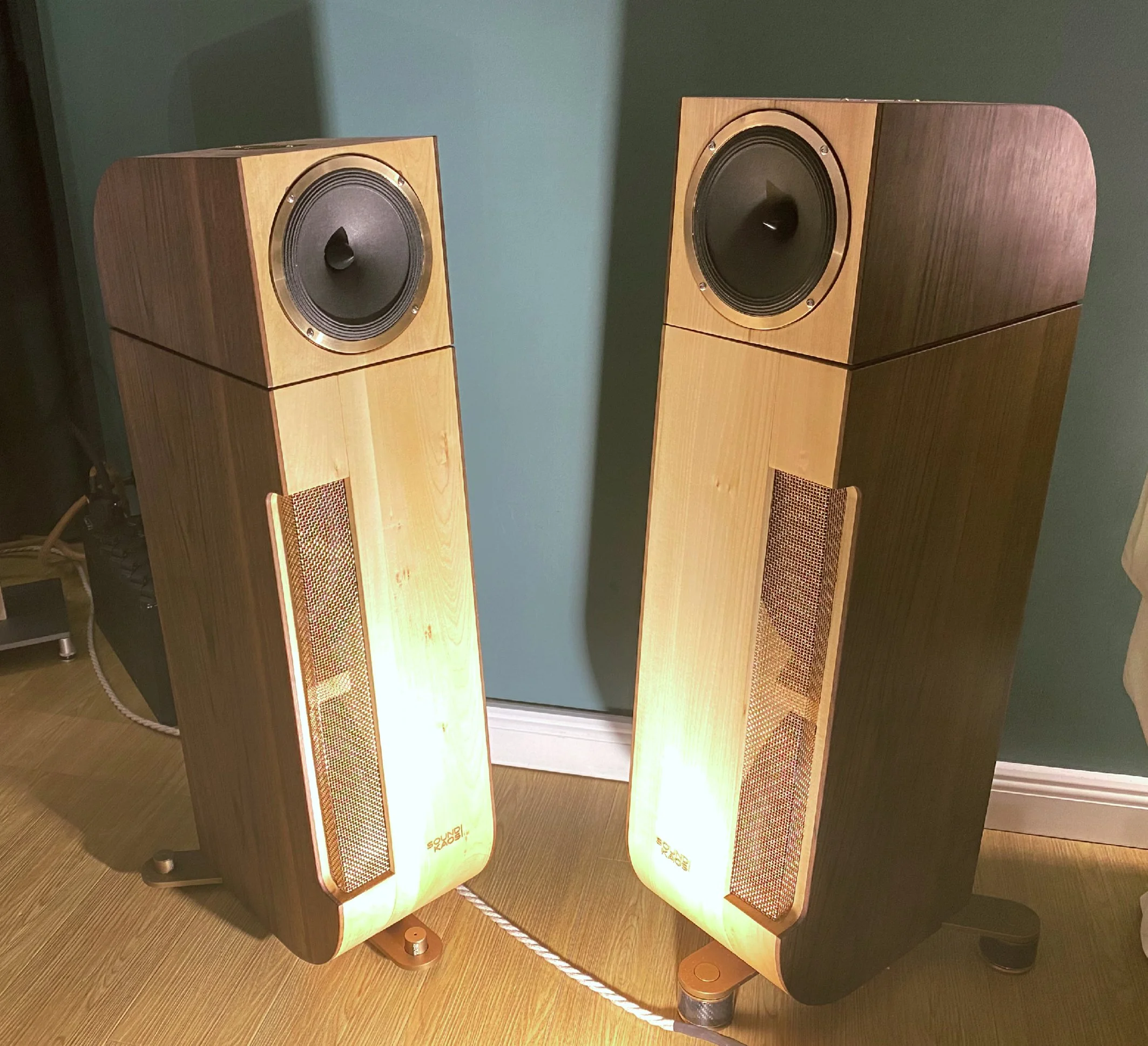

VOX 5

OTHER SPEAKERS focus on space, less on what occupies the space - VOX 5 dives deep into this space

VOX 5AL

4 driver 3-way

Enclosure in solid compressed cork|wood|cork or linoleum sandwich construction|various exterior finishes see below

Bronze mesh covers

Decoupled mid|high section from bass enclosure with VIBRA 30

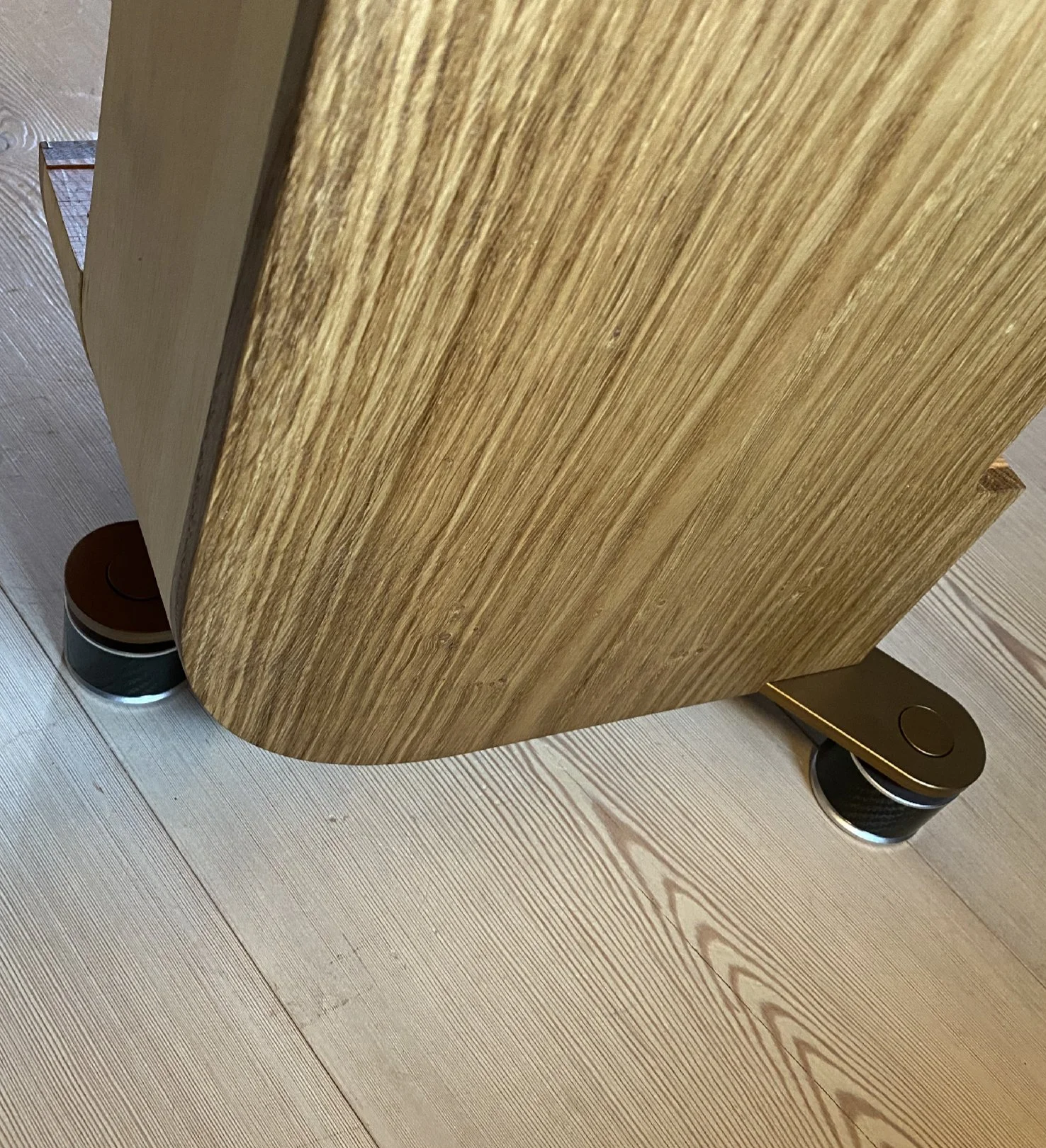

Integral VIBRA 68 vibration control feet on support base

Driver configuration :

180mm | 6” Enviee full range filter less | 200 Hz - 8kHz minimal correction only | cast bell bronze basket | dual chamber 3D printed internal wave guide
Twin 300mm | 12” woofers in open folded dipole configuration
Top mounted RAAL ribbon super tweeter

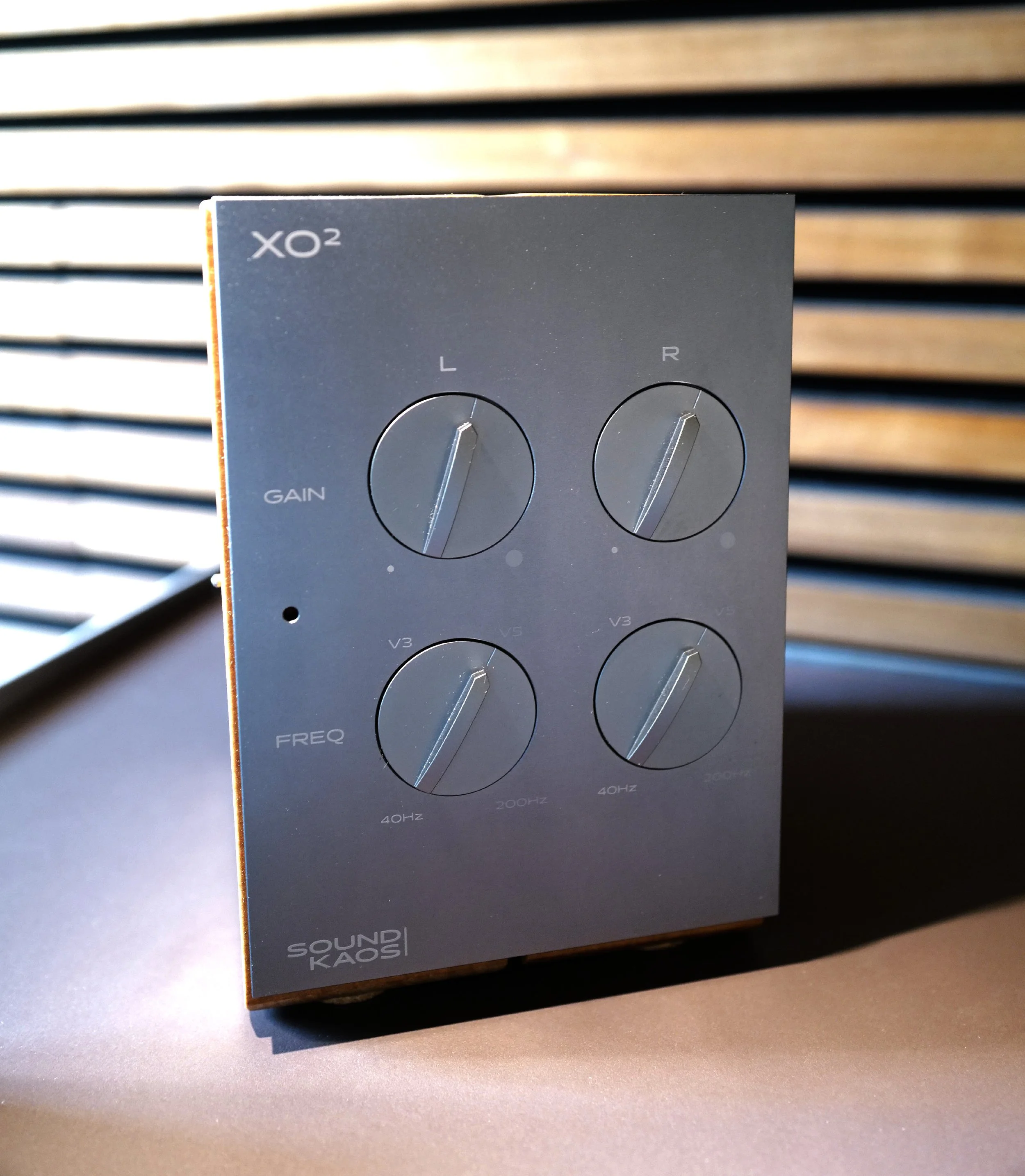

Passive correction filter on mid‘s | 12dB high pass on ribbon LF either passive or with our XO2 active filter|200 W per channel amplification unit.

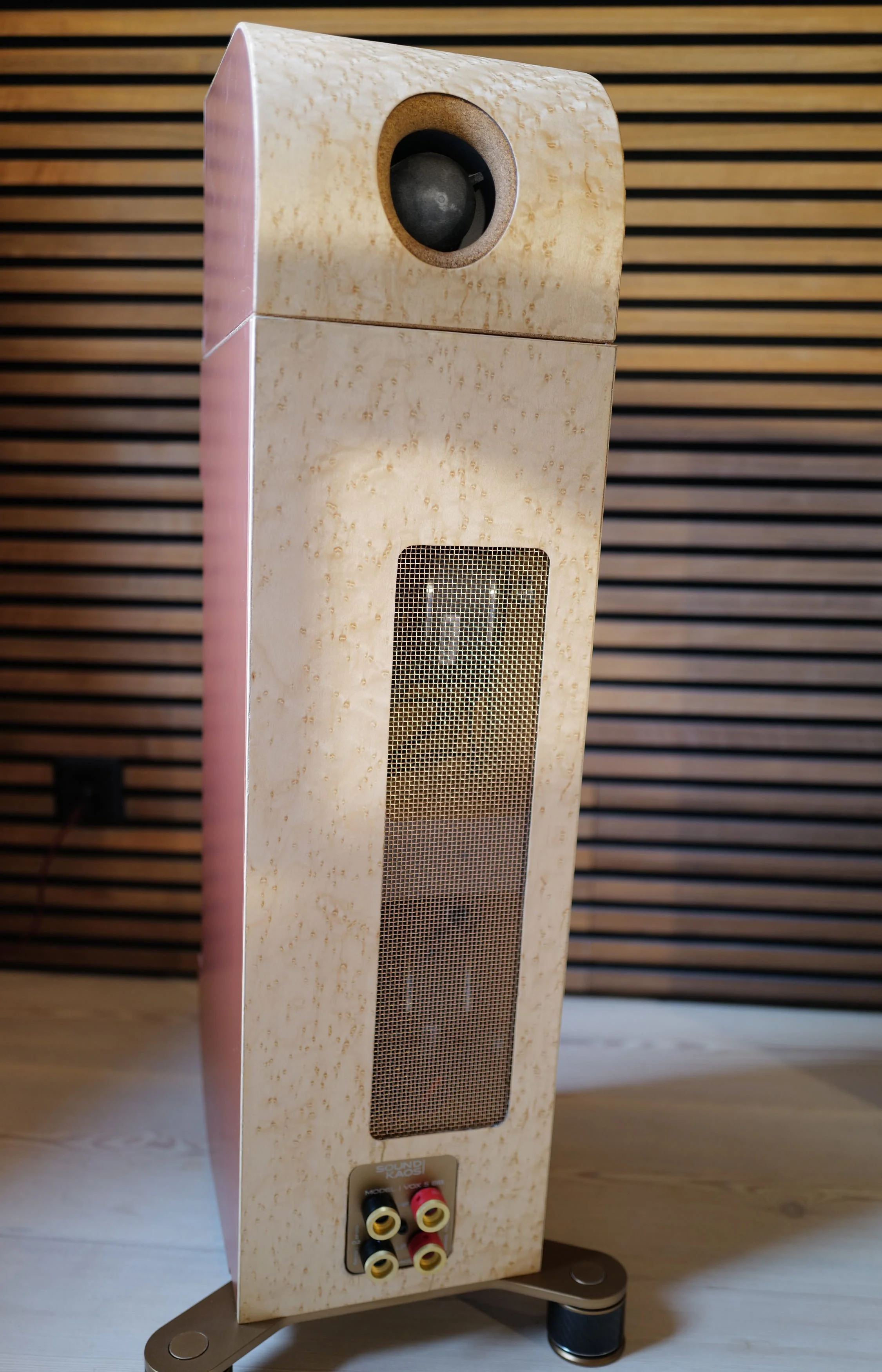

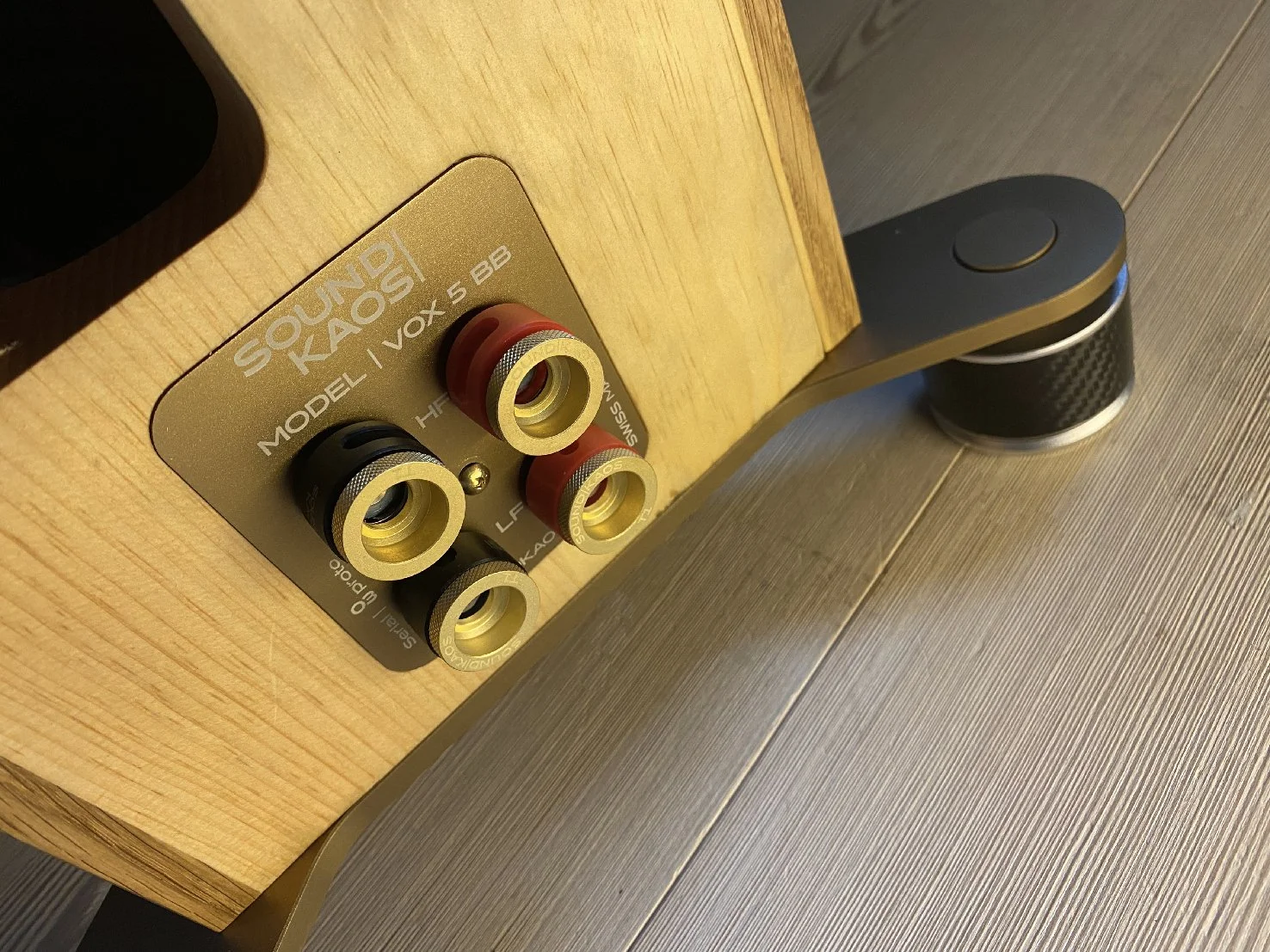

Soundkaos custom universal Bi-amplification terminals

Bandwidth 25Hz - 28kHz (28Hz - 22kHz +|- 2.5dB) varies due to room size

Dimensions : Enclosure W 228|D 340|H 920 mm

Including stand W 360|D 400|H 970 mm

VOX 5AW

4 driver 3-way

Enclosure in solid compressed cork|wood|veneer sandwich construction various exterior finishes see below

Custom wood finishes in natural wax|oil. Clear gloss lacquer on request

Bronze mesh covers

Decoupled mid|high section from bass enclosure with 3 VIBRA 30

Integral VIBRA 68 vibration control feet on support base

Driver configuration :

180mm | 6” Enviee full range 200 Hz - 8kHz no filter, correction only cast bell bronze basket | dual chamber 3D printed internal wave guide
Twin 300mm | 12” woofers in open dipole configuration
Top mounted RAAL ribbon super tweeter
Passive correction filter mid|high LF either passive or with our XO2 active filter|200 W per channel amplification unit.
Soundkaos custom universal Bi-amplification terminals

Bandwidth in room 28Hz - 35kHz varies due to room size

Dimensions : Enclosure W 228|D 340|H 920 mm

Including stand W 360|D 400|H 970 mm

VOX 5 speakers are finished with real wood veneer so variations in colour and grain appearance can vary signiﬁcantly. We try ours best to match pairs as closely as possible.
